| 性能特點 |

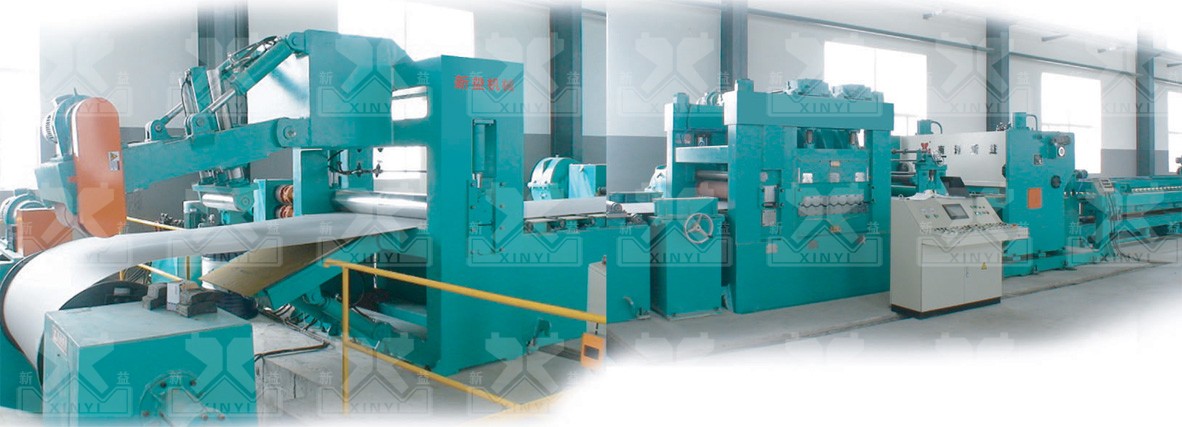

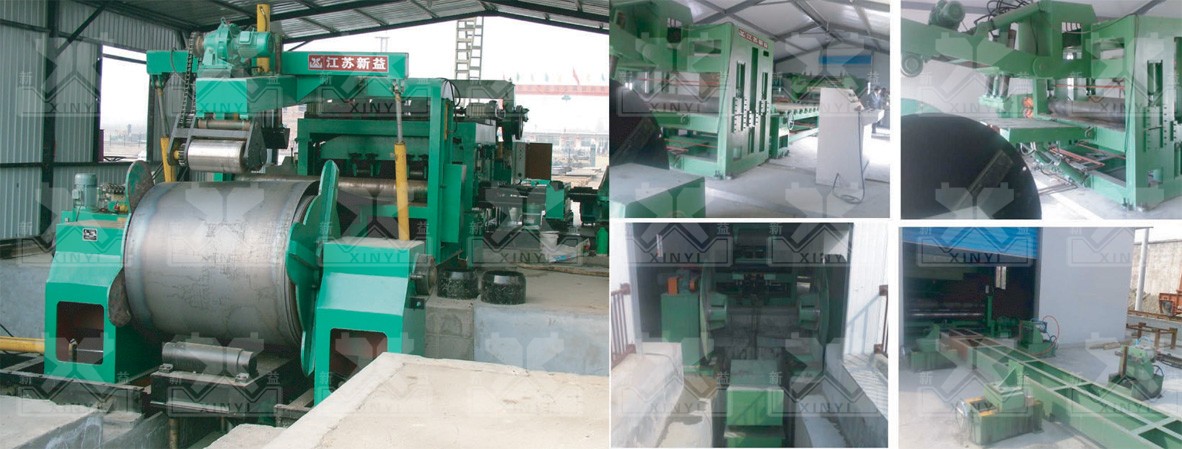

| 該生產線為中厚板開卷校平生產線的升級機型。為了適應鋼廠不斷推出的厚度更大、板幅更寬的鋼卷開平需要， 本公司特別設計、制造出該系列產品。由上料小車、開卷機、引頭裝置、夾送及粗校、過渡臺、對中裝置、主校 平機、測長裝置、尾料夾送、剪板機、輸送出料、落料整料裝置、電控系統與液壓氣動系統等組成。 | |
| Features: |
| This line is a upgrade type machine of cut-to-length line for middle/thick plate. In order to suitable for uncoiling of more thick and width of coils, we design and manufacture this series production. It consists of feeding car，uncoiler，traction device, pinch and rough-level, transition table, centering device, machine level machine, length device, endplate feeding,shearing machine, transport unloading, discharge device, electrical control system and hydraulic pneumatic system etc. | |
|
 |
|
 |
|
| 主要技術參數 Specifications |
| 項目 Name |
單位 Unit |
可選擇范圍 Optional range |
| 加工板厚 Plate thickness |
mm |
1.5-6.0 2.0-8.0 3.0-1.2 4.0-1.6 6.0-20 8.0-25 |
| 標準板寬 Standard width |
mm |
1300 1600 1800 2000 2200 2500 |
| 開卷機承重 Uncoiled weight |
T |
25-35 |
| 校平精度 Leveling precision |
mm/m2 |
2.0 |
| 定尺精度 Cut-to-length precision |
mm/2m |
±3.0 |
| 機組最高線速度 Highest line speed |
m/min |
10-25 |
| 機組總功率 Total power |
Kw |
150-400 | | |
|
| 本表所列參數，不作為產品檢驗依據，僅供產品選型參考。如出現與產品實際數據有不一致處，應遵照說明書或雙方的技術協議約定。 |
| The data in file not as inspection evidence, just reference for model chosen. If any difference with actual data, please refer to manual or technical agreement by both parties. | |
