| 性能特點 |

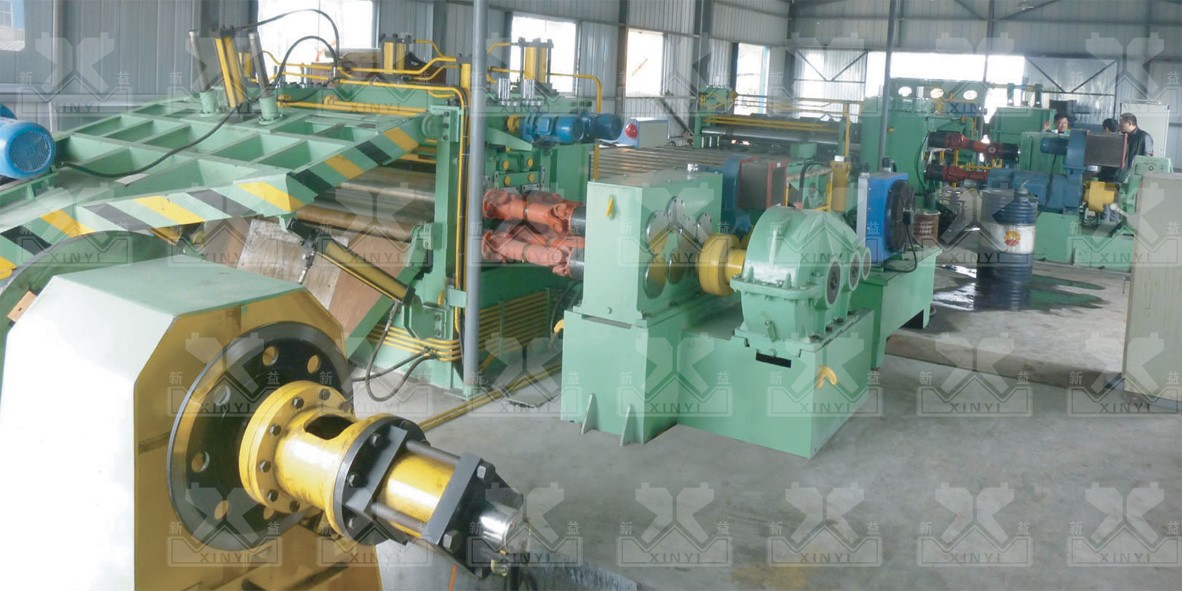

該生產線是將一定寬的金屬卷料中厚板在板寬方向縱剪成多條所需寬度的帶材并進行成品工件的卷取的成套 設備。

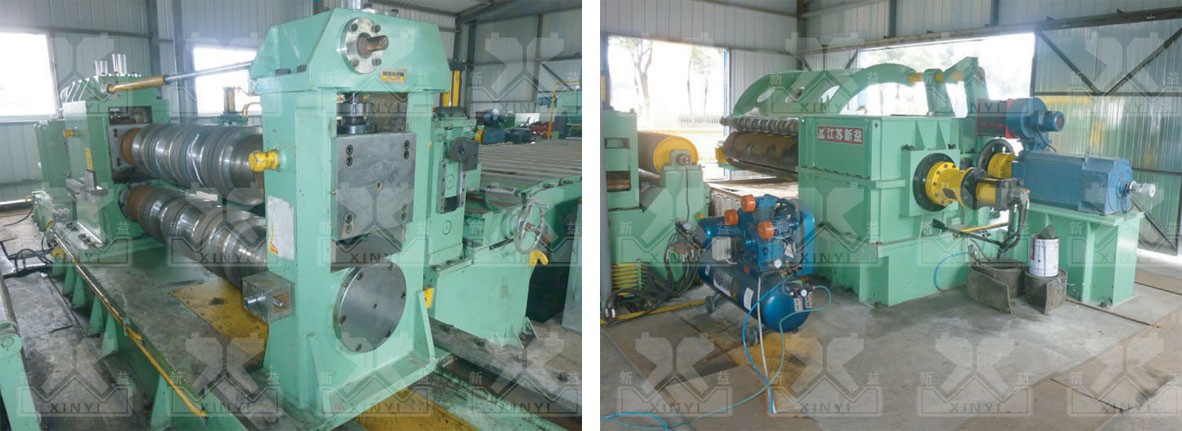

由上料小車、開卷機、壓引-牽引-粗校、過渡臺、對中裝置、縱剪主機、活套、阻尼預分料、收卷機、卸料小 車、液壓-氣動-電氣控制控制系統等組成。
通過更換與排列不同規格的刀片隔套，可縱剪成不同寬度成品工件。
可根據客戶的需求要及生產線的工藝與配置實際需要，另外選配料頭剪、廢邊卷取裝置等裝置。 | |
| Features: |
This line is a complete equipment for slitting to strip by corresponding width of metal work, and recoil the finished working piece.
It consists of feeding car, uncoiler, pressing-traction-rough level, transition table, centering device, slitting machine, loop, pre-material damping, recoiler, unloading car, hydraulic-pneumatic-electric control system etc.
Through change and arrange of the different specification blade spacer or moving blade seat, can slit to different width working piece.
Can according to customer* s request or need of production to choose optional head-cutter, waste recoil device, etc. | |
|
 |
|
 |
|
| 主要技術參數 Specifications |
| 項目 Name |
單位 Unit |
可選擇范圍 Optional range |
| 加工板厚 Plate thickness |
mm |
1.5-6.0 3.0-8.0 4.0-1.2 |
| 標準板寬 Standard width |
mm |
1300 1600 1800 2000 |
| 開卷機承重 Uncoiled weight |
T |
25-35 |
| 縱剪寬度精度 Slitting width precision |
mm |
±0.1-0.2 |
| 最多分條數 Max, slitting number |
pcs |
5-20 |
| 機組最高線速度 Highest line speed |
m/min |
20-50 |
| 機組總功率 Total power |
Kw |
150-400 | | |
|
| 本表所列參數，不作為產品檢驗依據，僅供產品選型參考。如出現與產品實際數據有不一致處，應遵照說明書或雙方的技術協議約定。 |
| The data in file not as inspection evidence, just reference for model chosen. If any difference with actual data, please refer to manual or technical agreement by both parties. | |
