| 性能特點 |

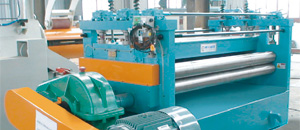

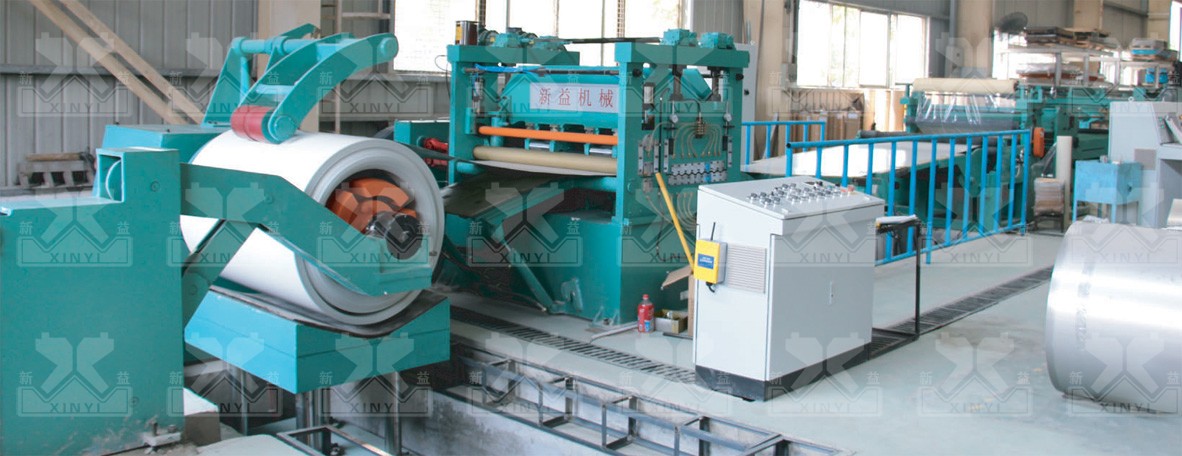

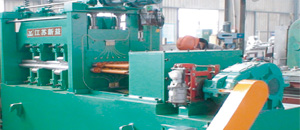

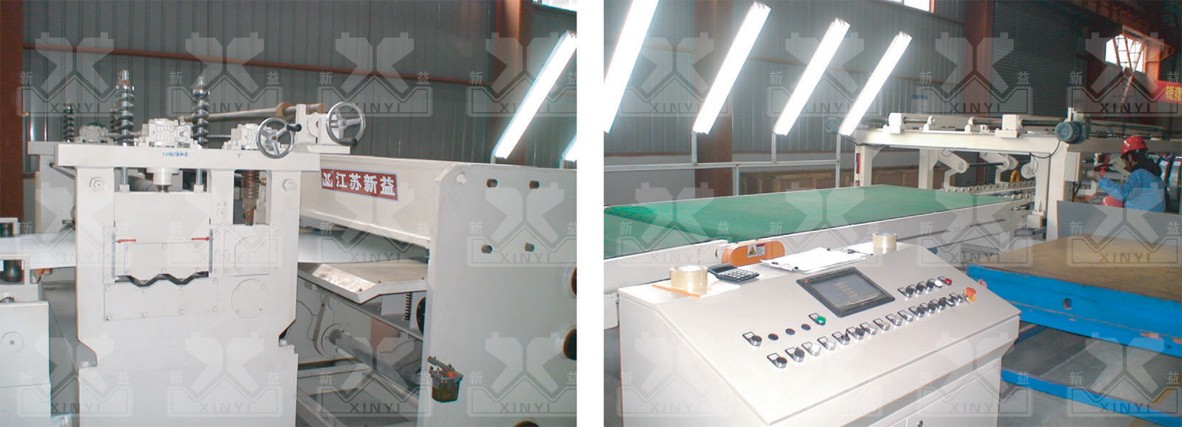

該生產線是將較薄金屬卷板整平、剪切成塊狀板材的專用設備。通常由上料小車、開卷機、托板壓引裝置、 校平主機、活動過橋、導向糾偏裝置、定尺機構、覆膜裝置、剪板機、輸送工作臺、氣動排料架、液壓升降 垛料臺、運料滾道臺及液壓系統、電氣控制系統等組成，協同動作PLC控制。
本設備主要用來加工冷軋?zhí)间摼戆濉⒉讳P鋼卷板及有色金屬卷板等，可以根據客戶的需求和工件加工的需要，選用六重式、四重式或二重式校平主機。
根據客戶要求，校平可采用初、精兩級校平機校平；定長送剪可采用普通機械電器協同動作、數字變頻技術 或交流伺服技術；剪板機可配用普通機械、液壓機型，電磁離合器、氣動離合器傳遞動力的高速閘式剪板機，移動跟蹤的追剪以及回轉式飛剪機。配套相關成型機床可作更大范圍功能延伸。 | |
| Features: |
This line is professional equipment for leveling and cutting plate to pieces for thin metal plate, It usually consists of feeding car, uncoiler, pressing & traction device, level machine, movable bridge, guide correction device, cut-to-length mechanism, film coating device, shearing machine, transition table, pneumatic discharging frame, hydraulic lifting stack table, transport roll table, and hydraulic, pneumatic, electrical control system etc. Control with PLC.
This equipment is mainly for processing cold carbon coil, stainless steel coil, and color metal coil etc, can choose optional 6-high, 4-high, or 2-high level machine according to customer* s request or needs of working plates.
According to customer* s request, the level machine can use rough and precision to straightening, the cut-to-length can adopt common mechanical electronic, digital frequency , and AC servo technology; Shearing machine can choose options Imechanical and hydraulic type, high speed guillotine shearing machine which is droved by electromagnetic or pneumatic clutch, movable catching shear and return flying shearing machine. | |
|
 |
|
 |
|
| 主要技術參數 Specifications |
| 項目 Name |
單位 Unit |
可選擇范圍 Optional range |
| 加工板厚 Plate thickness |
mm |
0.3-1.5 0.5-3.0 0.6-4.0 |
| 標準板寬 Standard width |
mm |
1000 1250 1600 2000 |
| 開卷機承重 Uncoiled weight |
T |
6-25 |
| 校平精度 Leveling precision |
mm/m2 |
1.2 |
| 定尺精度 Cut-to-length precision |
mm/2m |
±0.5-1.0 |
| 機組最高線速度 Highest line speed |
m/min |
20-60 |
| 機組總功率 Total power |
Kw |
85-150 | | |
|
| 本表所列參數，不作為產品檢驗依據，僅供產品選型參考。如出現與產品實際數據有不一致處，應遵照說明書或雙方的技術協議約定。 |
| The data in file not as inspection evidence, just reference for model chosen. If any difference with actual data, please refer to manual or technical agreement by both parties. | |
