| 性能特點 |

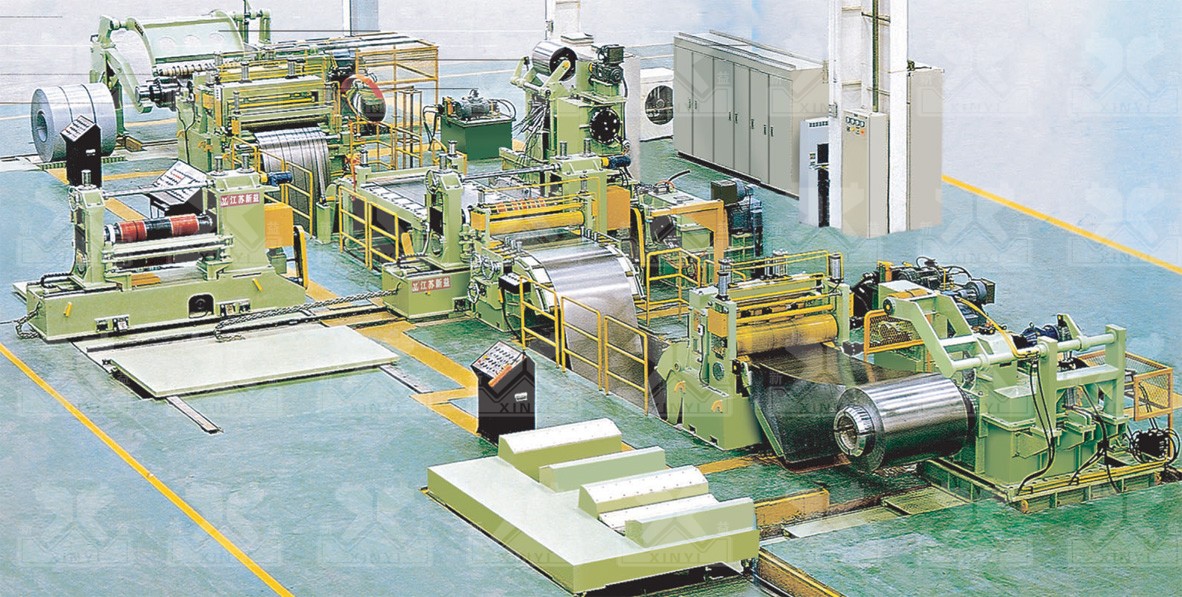

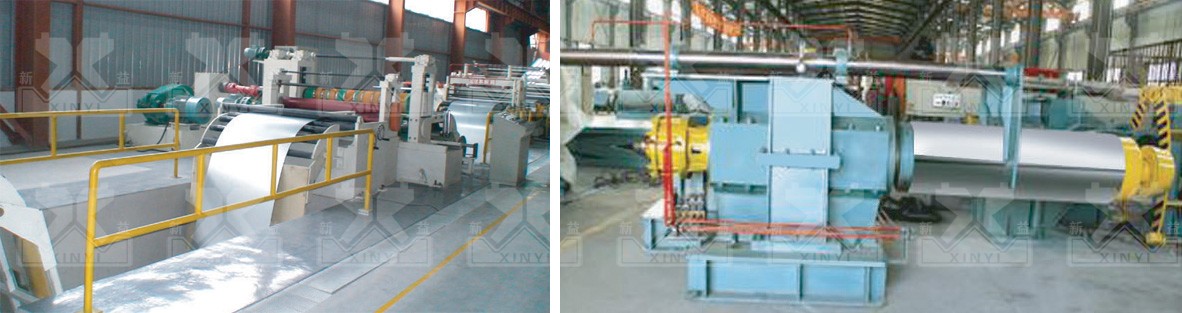

| 該生產線是冷軋金屬板開卷縱剪收卷專用設備，正常配置上料小車、開卷、送料、圓盤刀片縱剪機、阻尼預分料、收卷機組、卸料小車、控制系統等單元機器外，在送料的后面可選粗校機構；還可根據客戶需 要配置一用一備兩臺縱剪機組。一臺在線工作時，另一臺進行更換刀片隔圈、隔套，維護修整，極大提高 生產線的工作效率、增加產量降低成本。 | |
| Features: |
| This line is professional equipment for uncoil slitting and recoil of cold metal plate, it not only consists of feeding car, uncoiler, loading, circle disc blade for slitting machine, pre-material damping, recoiler, discharging car, and control system, but can choose optional level mechanism; also can choose complete two slitting machines, when one slitting machine is working, the other one can change blade spacer and sleeve or maintenance and repair, it can improve working efficiency, increase production and decrease cost. | |
|
 |
|
 |
|
| 主要技術參數 Specifications |
| 項目 Name |
單位 Unit |
可選擇范圍 Optional range |
| 加工板厚 Plate thickness |
mm |
0.3-1.5 0.4-2.0 0.5-3.0 0.8-4.0 |
| 標準板寬 Standard width |
mm |
1000 1300 1600 1800 |
| 開卷機承重 Uncoiled weight |
T |
6-25 |
| 縱剪寬度精度 Slitting width precision |
mm |
±0.05-0.15 |
| 最多分條數 Max, slitting number |
pcs |
5-25 |
| 機組最高線速度 Highest line speed |
m/min |
50-120 |
| 機組總功率 Total power |
Kw |
50-200 | | |
|
| 本表所列參數，不作為產品檢驗依據，僅供產品選型參考。如出現與產品實際數據有不一致處，應遵照說明書或雙方的技術協議約定。 |
| The data in file not as inspection evidence, just reference for model chosen. If any difference with actual data, please refer to manual or technical agreement by both parties. | |
