| 性能特點 |
| 本機床為輥式金屬板料整平專用設備，通常由動力、主機和電器控制等部分組成。利用多輥工作原理，使板 料在上、下校平輥之間反復變形，消除應力，達到校平的目的。在上、下排工作輥外側，設剛性支撐輥（輪），構 成四重式組輥結構。板料通過本機校平，可明顯改善其平整狀態，提高工件的質量。可獨立工作，用于單塊板材的 校平；亦可在本機前配置開卷、引料，后面配置剪切、垛料及聯機機構等，通過控制系統連成性能完備的生產線， 對金屬卷材進行整平、分切。 | |
| Features: |

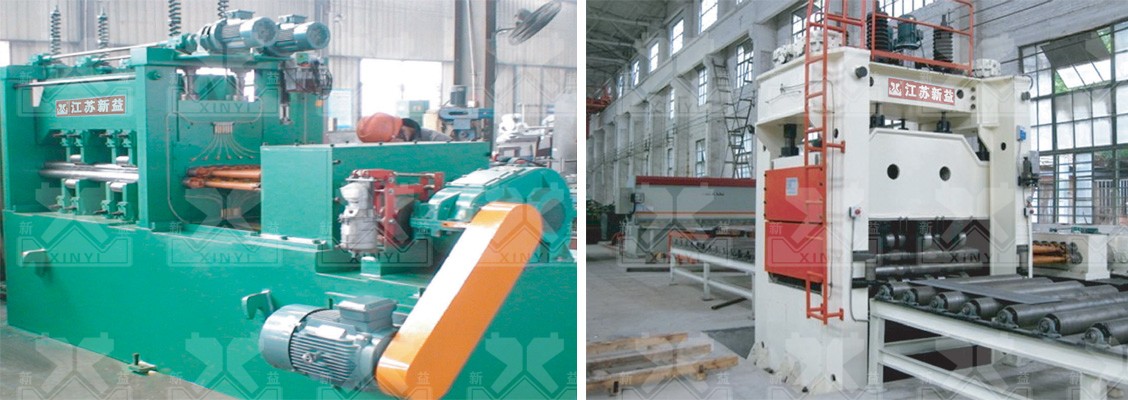

This machine is for levelling roller type metal plate, consist of power, main machine and electrical control system etc.
By the principle of several rollers working, the plate repeated deformation in the middle of upper and lower rollers, eliminate stress. In the outer side of upper and lower rollers, there is another row of support rollers, which can makes up 4-high group rollers. After leveling by this machine, the plate is much flusher with good quality. It can work independently to level single plates, or can install with uncoiler and traction device in the beginning of this machine, and install with cutting, stacking and linkage mechanism. | |
|
 |
|
| 主要技術參數 Specifications |
| 項目 Name |
單位 Unit |
可選擇范圍 Optional range |
| 加工板厚 Plate thickness |
mm |
0.3-1.5 0.5-3.0 1.0-5.0 1.5-6.0 2.0-8.0 3.0-12 4.0-16 6.0-20 8.0-25 |
| 標準板寬 Standard width |
mm |
800 1000 1300 1600 2000 2500 |
| 校平輥數 Level rollers number |
pcs |
7-19 |
| 校平輥直徑 Level rollers dia. |
mm |
55-250 |
| 支撐輥組數 Support rollers number |
Group |
1-5 |
| 校平精度 Leveling precision |
mm/m2 |
1.0-2.0 |
| 校平速度 Leveling speed |
mm/min |
5-30 |
| 主電機功率 Main motor power |
Kw |
11-132 | | |
|
| 本表所列參數，不作為產品檢驗依據，僅供產品選型參考。如出現與產品實際數據有不一致處，應遵照說明書或雙方的技術協議約定。 |
| The data in file not as inspection evidence, just reference for model chosen. If any difference with actual data, please refer to manual or technical agreement by both parties. | |
